Free download jCircuits Linux app to run online in Ubuntu online, Fedora online or Debian online

This is the Linux app named jCircuits whose latest release can be downloaded as jCircuits_1.8.zip. It can be run online in the free hosting provider OnWorks for workstations.

Download and run online this app named jCircuits with OnWorks for free.

Follow these instructions in order to run this app:

- 1. Downloaded this application in your PC.

- 2. Enter in our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.

- 3. Upload this application in such filemanager.

- 4. Start the OnWorks Linux online or Windows online emulator or MACOS online emulator from this website.

- 5. From the OnWorks Linux OS you have just started, goto our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.

- 6. Download the application, install it and run it.

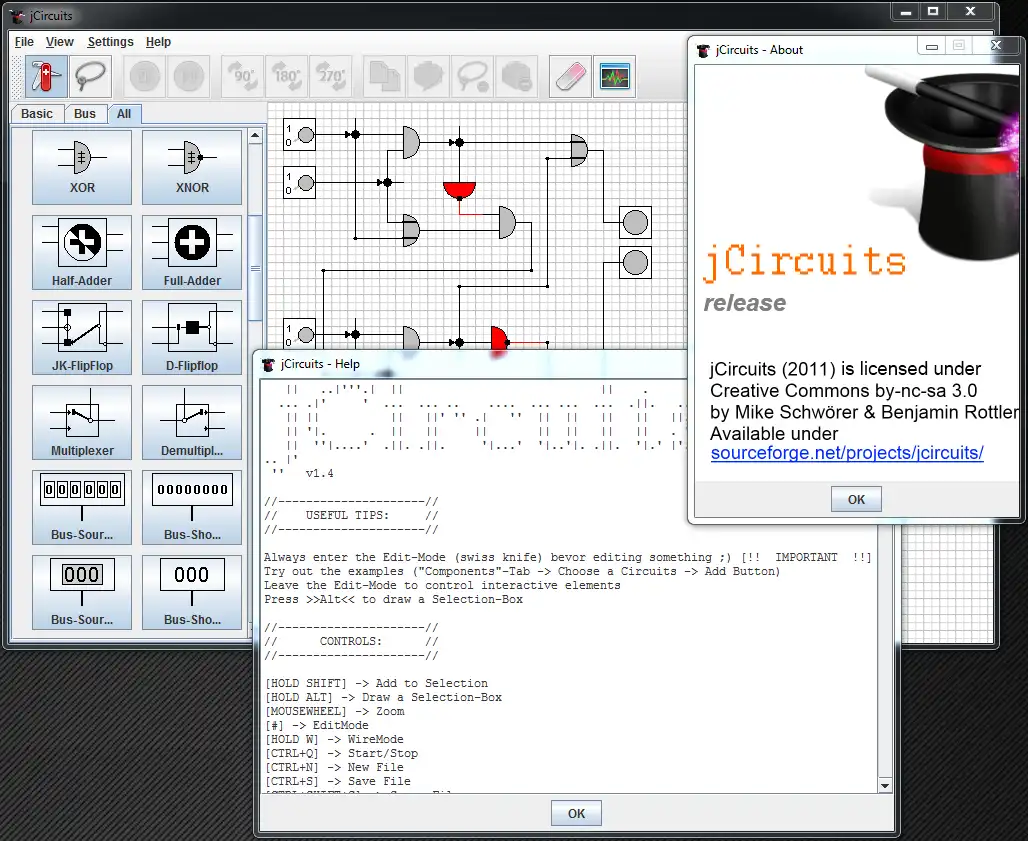

A very easy-to-use but complex Gate-Simulation.You can simulate various gatters like AND, NAND, OR, NOR, NOT, XOR. And also build Flip-Flops, Full Adders and other compley structures. In other words its a register-Transfer Simulation of Hardware-Processes.

There are also 2 Applet-Versions - the full Version and a only-Display-Version

---------- USEFUL TIPS: ----------

Always enter the Edit-Mode (swiss knife) bevor editing something ;) [!! IMPORTANT !!]

Try out the examples ("Components"-Tab -> Choose a Circuit -> Add Button)

Leave the Edit-Mode to control interactive elements

Press >>Alt<< to draw a Selection-Box

Press >>Shift<< to complement your Selection


  • Gate Simulation
  • FlipFlops
  • works on nearly all Operating systems
  • Register-Transfer-Simulation
  • neat GUI
  • free and Open-Source
  • very performant
  • full-functional Applet-Version
  • a Only-Display-Applet-Version (no need of signing the Applet)
  • BUS-System
  • OpenGL and Canvas Rendering
  • Compatible with the Cir-Fileformat (http://gkinf.de)
  • Load and Save the Grid
  • Dragging and Zooming
  • Over 50 different Elements

User interface

Java Swing

Programming Language



Hardware, Simulations

This is an application that can also be fetched from https://sourceforge.net/projects/jcircuits/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
