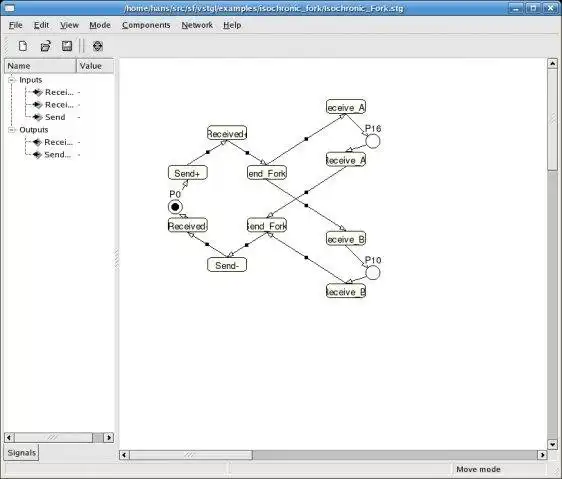

SCREENSHOTS
Ad
Visual STG Lab
DESCRIPTION
VSTGL is a graphical editor for Signal
Transition Graphs (STG) and Petri nets. VSTGL is able to export the
created STG to Petrify - an advanced tool for analyzing and optimizing
STG's - or run Petrify on the graph directly.
Audience
End Users/Desktop, Science/Research
User interface
X Window System (X11)
Programming Language
C++
