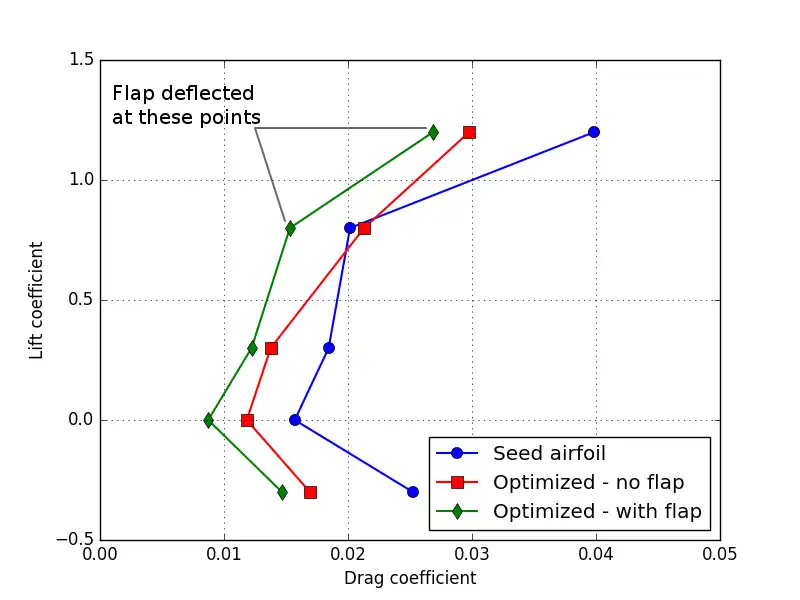

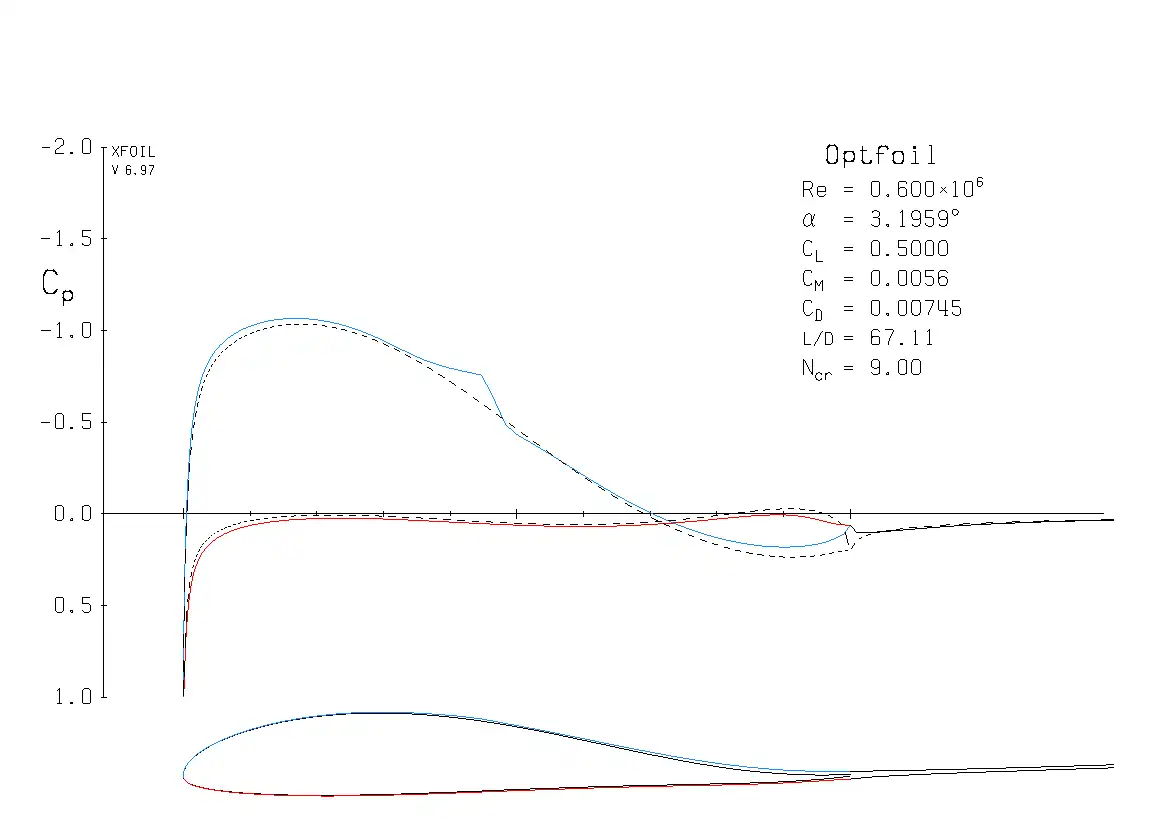

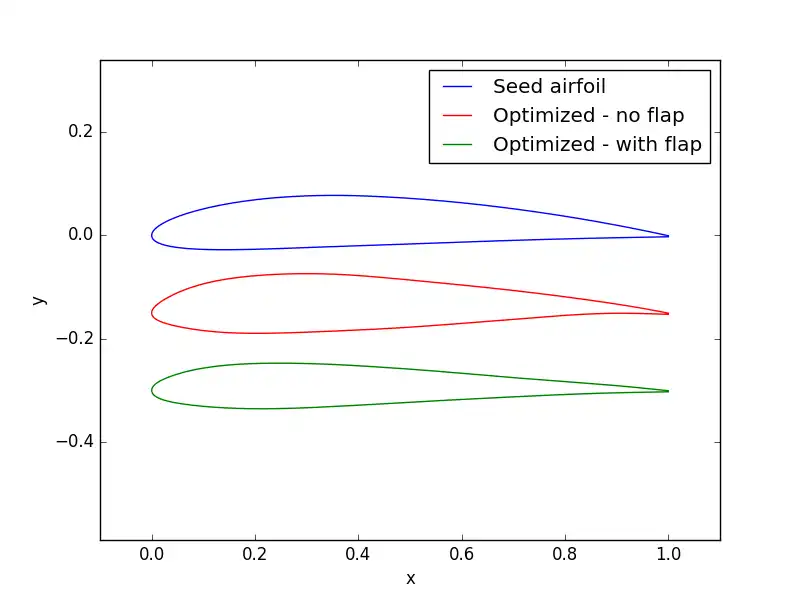

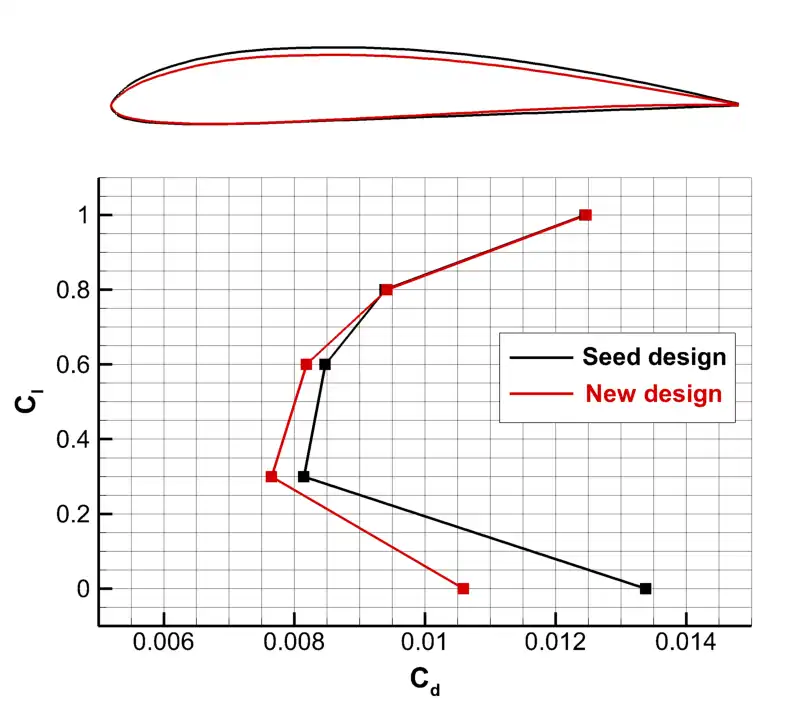

SCREENSHOTS

Ad


Xoptfoil


DESCRIPTION

Airfoil optimization using the highly-regarded Xfoil engine for aerodynamic calculations. Starting with a seed airfoil, Xoptfoil uses particle swarm, genetic algorithm and direct search methodologies to perturb the geometry and maximize performance. The user selects a number of operating points over which to optimize, desired constraints, and the optimizer does the rest.



Features

  • Supports up to 30 operating points during optimization and multiple user-defined constraints
  • Each operating point has a specified lift coefficient or angle of attack, Reynolds number, Mach number, and flap deflection
  • Flap angle for each operating point can be used as design variables
  • Different optimization objectives (minimize drag, maximize glide slope, minimize sink rate, or maximize lift) can be set at each operating point
  • Each operating point is assigned a relative weight (importance) by the user
  • Available constraints include thickness, camber, curvature reversals, pitching moment, and trailing edge wedge angle
  • Currently included optimization algorithms: particle swarm, genetic algorithm, and Nelder-Mead simplex algorithm
  • The optimizer is robust: many checks for reasonable geometry and Xfoil consistency in place
  • Parallel version available
  • Xfoil engine accurately predicts transition, separation bubbles, and stall at low Reynolds numbers


Audience

Aerospace


User interface

Console/Terminal


Programming Language

Fortran


Categories

Physics

This is an application that can also be fetched from https://sourceforge.net/projects/xoptfoil/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
