CTREE Graphic Tree Generator for C
DESCRIPTION
CTREE is a command line utility providing analysis tools useful to software engineers tasked with tracking down problems or verifying a program's soundness. It is also an aid to understanding the structure of unfamiliar programs. As it works with standard C it finds most of its utility in embedded systems and older software.
CTREE comes with a comprehensive manual.
CTREE is is released by Cleveland Engineering Design, LLC - developer of the CoRTOS cooperative RTOS
https://sourceforge.net/projects/cortos-simple/ and PRTOS pre-emptive RTOS
https://sourceforge.net/projects/prtos-preemptive-rtos/
V 1.01 - fixed bug that could cause lock-ups or garbage output with some coding styles.
Features

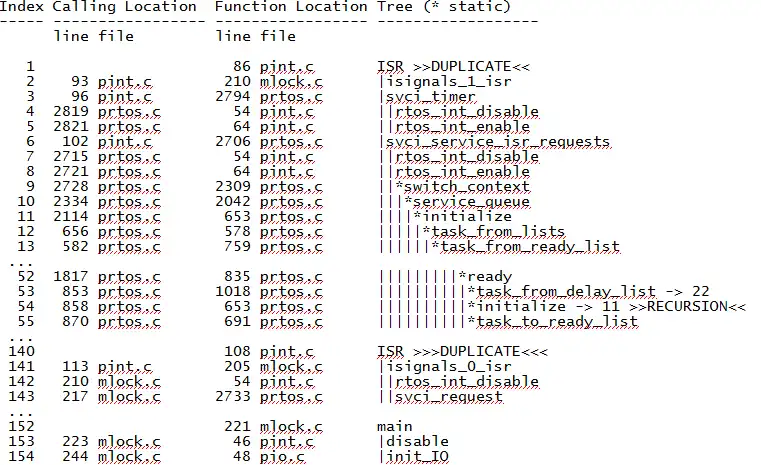

- Graphical tree showing the structure of a program's C source code. A tree is produced for each root of the program - main (), interrupt service routines, independent tasks running under an RTOS, and any vestigial uncalled functions;
- Reverse tree that starts with a function and traces back all paths that lead to the function from the roots of the program;
- Tree index showing the locations of each function in the tree;
- Cross reference showing where each function is called;
- List of uncalled functions;
- Identification of possible recursive paths, multiple functions with the same name and duplicate functions.
Audience
Developers, Quality Engineers, Testers, Engineering
User interface
Command-line
Programming Language
C
