Free download tv16k7 to run in Linux online Linux app to run online in Ubuntu online, Fedora online or Debian online

This is the Linux app named tv16k7 to run in Linux online whose latest release can be downloaded as tv16k7-src-snapshot170821.tgz. It can be run online in the free hosting provider OnWorks for workstations.

Download and run online this app named tv16k7 to run in Linux online with OnWorks for free.

Follow these instructions in order to run this app:

- 1. Downloaded this application in your PC.

- 2. Enter in our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.

- 3. Upload this application in such filemanager.

- 4. Start the OnWorks Linux online or Windows online emulator or MACOS online emulator from this website.

- 5. From the OnWorks Linux OS you have just started, goto our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.

- 6. Download the application, install it and run it.

SCREENSHOTS:

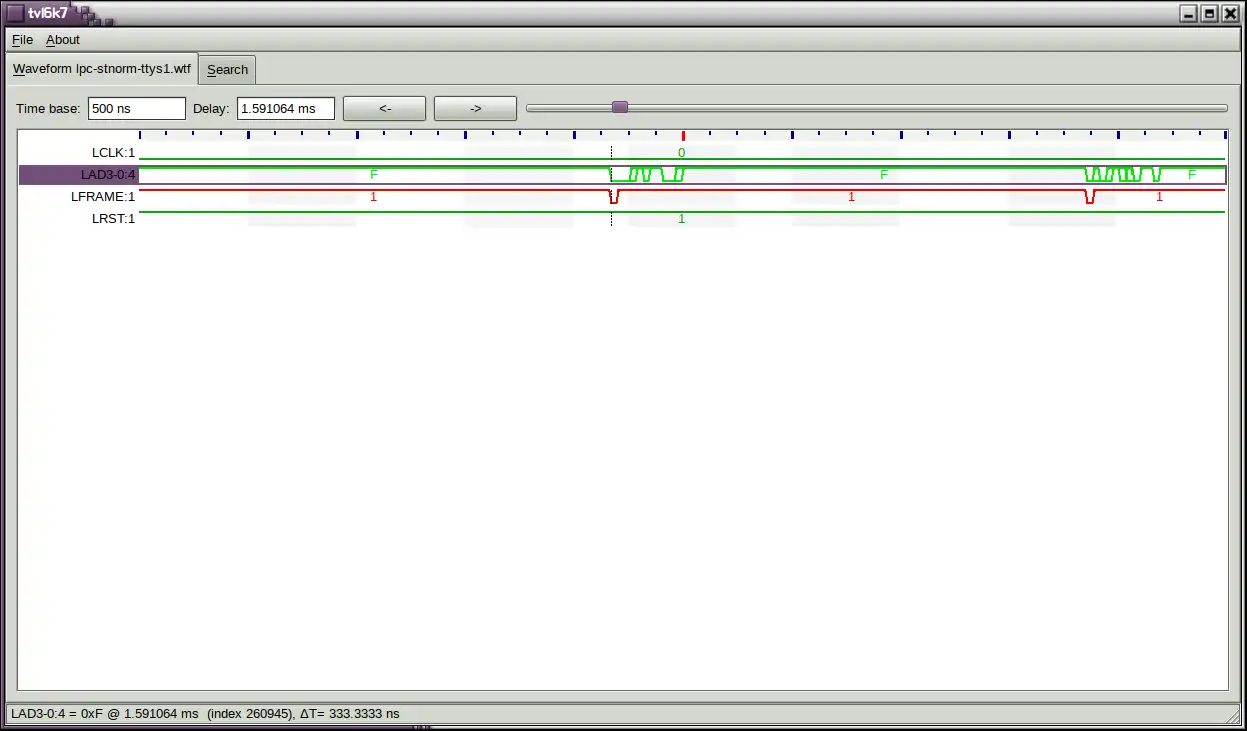

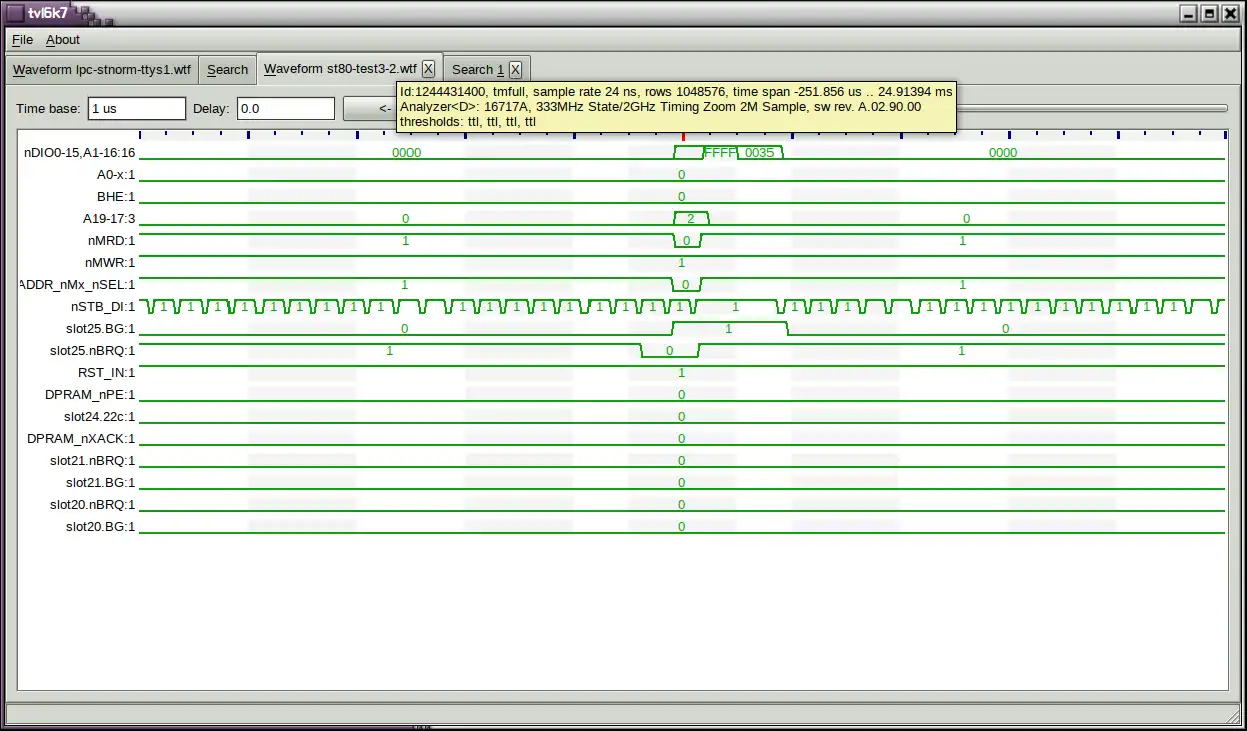

tv16k7 to run in Linux online


DESCRIPTION:

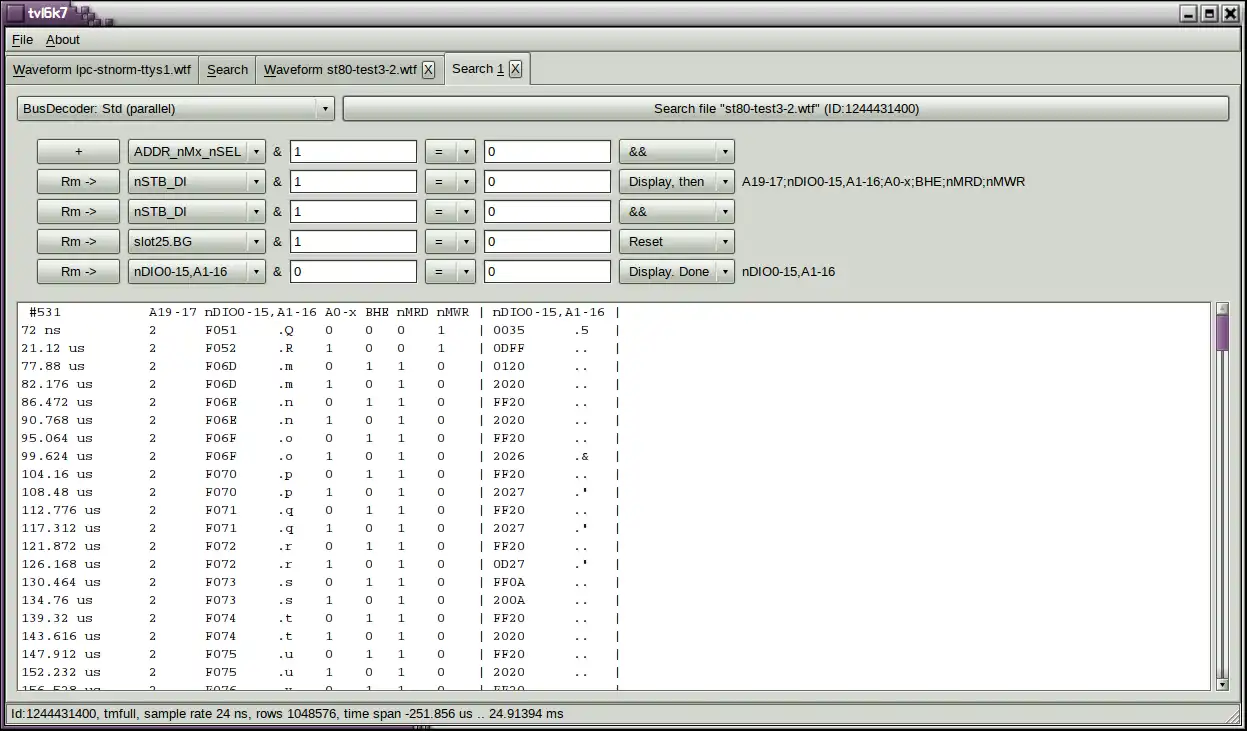

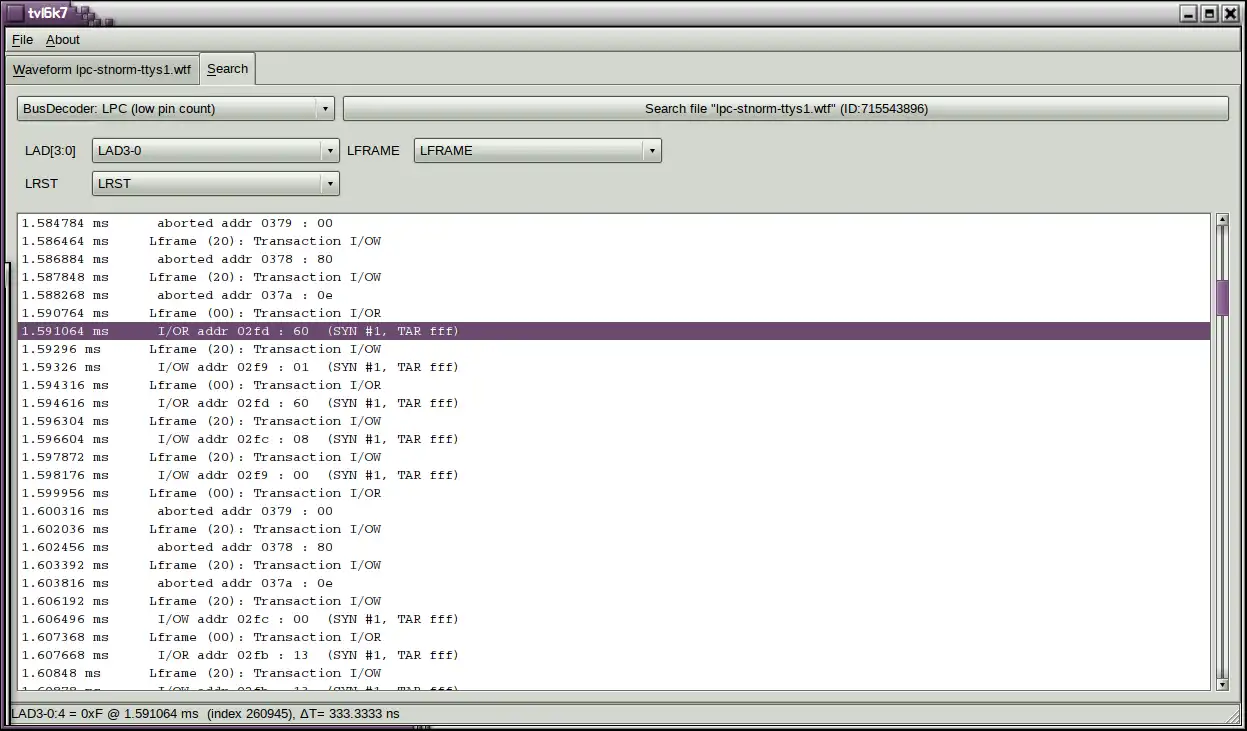

A tool for graphical analysis of digital traces recorded by Agilent's Logic Analyzers like HP16700. It is possible to perform higher level bus protocol decoding and parsing with help of "search" tab. These tabs are used to select the Bus Decoder (plugin shared library), configure Bus Decoder parameters and execute higher level analysis.
The tool tries to be self descriptive and get as many information as possible from HP16700 for better documenting labor: e.g. test cases, spotted issues and so on.

Keywords: Linux, C, C++, Qt, Qt4, Agilent/HP 16700 logic analyzer, Bus decoders (inverse assemblers), bus probing, bus protocol analyze

Features

  • bus decoders are plugins (shared libraries)
  • more sophisticated bus decoders can be implemented

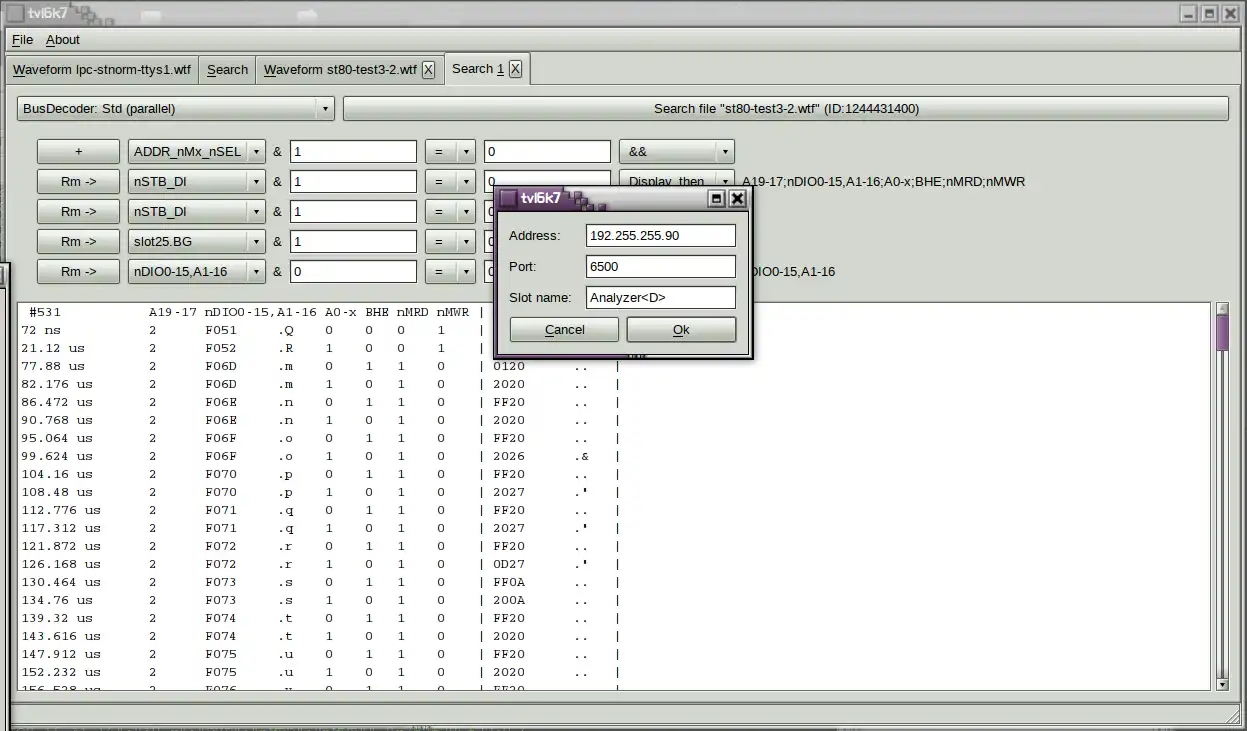

  • RPI support (Agilent 5988-9067EN) for LA cards
  • in-house developed format of dataset files.
  • can be adapted for custom needs (open source)
  • higher precision timestamps are used than these used by native HP1670x UI
  • Qt4 based GUI for convenience (e.g. tooltips)
  • multiple trace and bus decoder windows
  • possible to invert trace after capturing data


Audience

Science/Research, Education, Telecommunications Industry, Developers, Engineering


User interface

Qt


Programming Language

C++, C



This is an application that can also be fetched from https://sourceforge.net/projects/tv16k7/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
