Penthode to run in Windows online over Linux online
DESCRIPTION
Given a simple net-list describing the high level power architecture of your system Penthode:- simulates the voltage and current from device turn on to the steady state.
- highlights components working out of specification

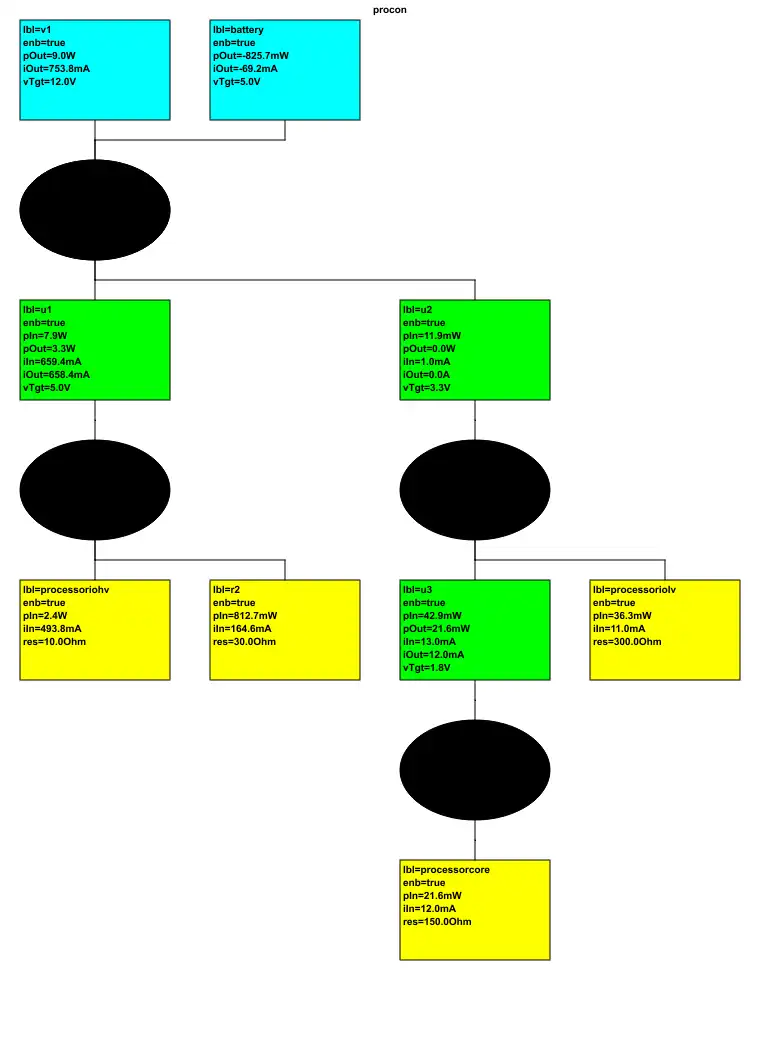

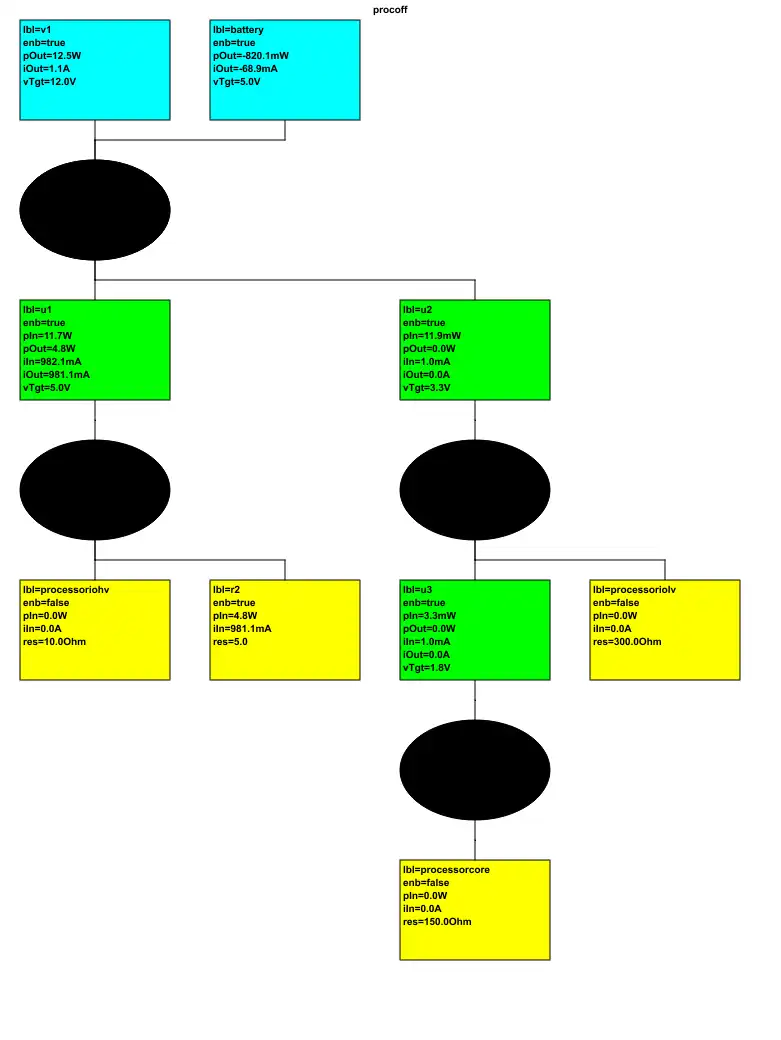

- draws a nice power tree diagram showing the currents/powers balance

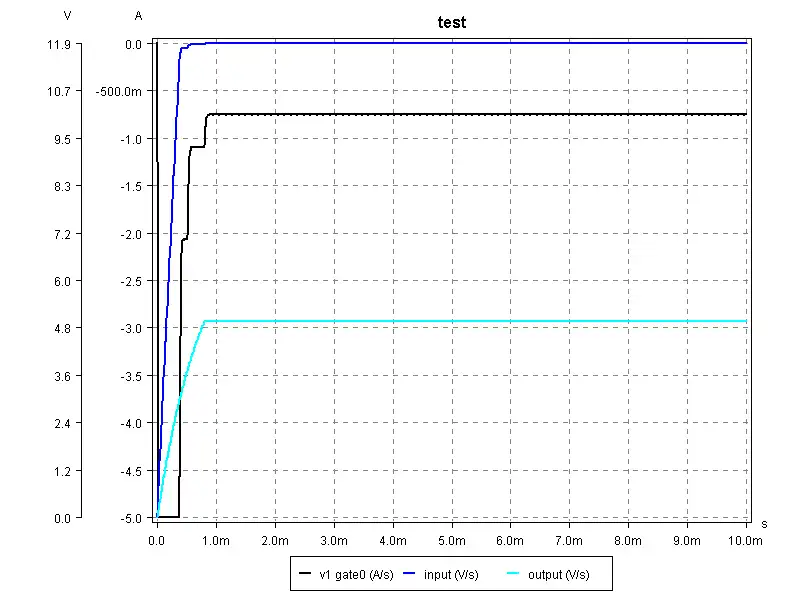

- plots node transient voltage and gate current waveforms
It is possible to change component parameters interactively to improve the design
Features
- electronic time domain simulation
- power tree automatic generation
- interactive design
- basic programming language
Audience
Engineering
User interface
Console/Terminal
Programming Language
Java
This is an application that can also be fetched from https://sourceforge.net/projects/penthode/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
