QBlade download for Windows

Free download QBlade Windows app to run online win Wine in Ubuntu online, Fedora online or Debian online

This is the Windows app named QBlade whose latest release can be downloaded as QBlade_win_v0.96.3_64bit.zip. It can be run online in the free hosting provider OnWorks for workstations.

Download and run online this app named QBlade with OnWorks for free.

Follow these instructions in order to run this app:

- 1. Downloaded this application in your PC.

- 2. Enter in our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.

- 3. Upload this application in such filemanager.

- 4. Start any OS OnWorks online emulator from this website, but better Windows online emulator.

- 5. From the OnWorks Windows OS you have just started, goto our file manager https://www.onworks.net/myfiles.php?username=XXXXX with the username that you want.

- 6. Download the application and install it.

- 7. Download Wine from your Linux distributions software repositories. Once installed, you can then double-click the app to run them with Wine. You can also try PlayOnLinux, a fancy interface over Wine that will help you install popular Windows programs and games.

Wine is a way to run Windows software on Linux, but with no Windows required. Wine is an open-source Windows compatibility layer that can run Windows programs directly on any Linux desktop. Essentially, Wine is trying to re-implement enough of Windows from scratch so that it can run all those Windows applications without actually needing Windows.

SCREENSHOTS

Ad


QBlade


DESCRIPTION

NEW QBlade v0.96.3

v0.96.3 includes a hotfix for a problem leading to crashes during polar extrapolation!

Guidelines will be updated soon, until then use the Guidelines v0.95 document: https://goo.gl/htvb34

QBlade is a Blade Element Momentum Method (BEM), Double Multiple Streamtube (DMS) and nonlinear Lifting Line Theory (LLT) Design and Simulation Software for Vertical- and Horizontal Axis Wind Turbines. It also includes tools to setup and simulate the internal blade structure and perform an aeroelastic analysis of a wind turbine rotor in turbulent inflow conditions through a coupling with FAST from NREL

Feature video: https://goo.gl/VAJ7ww



Features

  • Airfoil design and simulation using XFOIL viscous/inviscid analysis
  • Extrapolation of XFOIL generated or imported polar data to 360° AoA

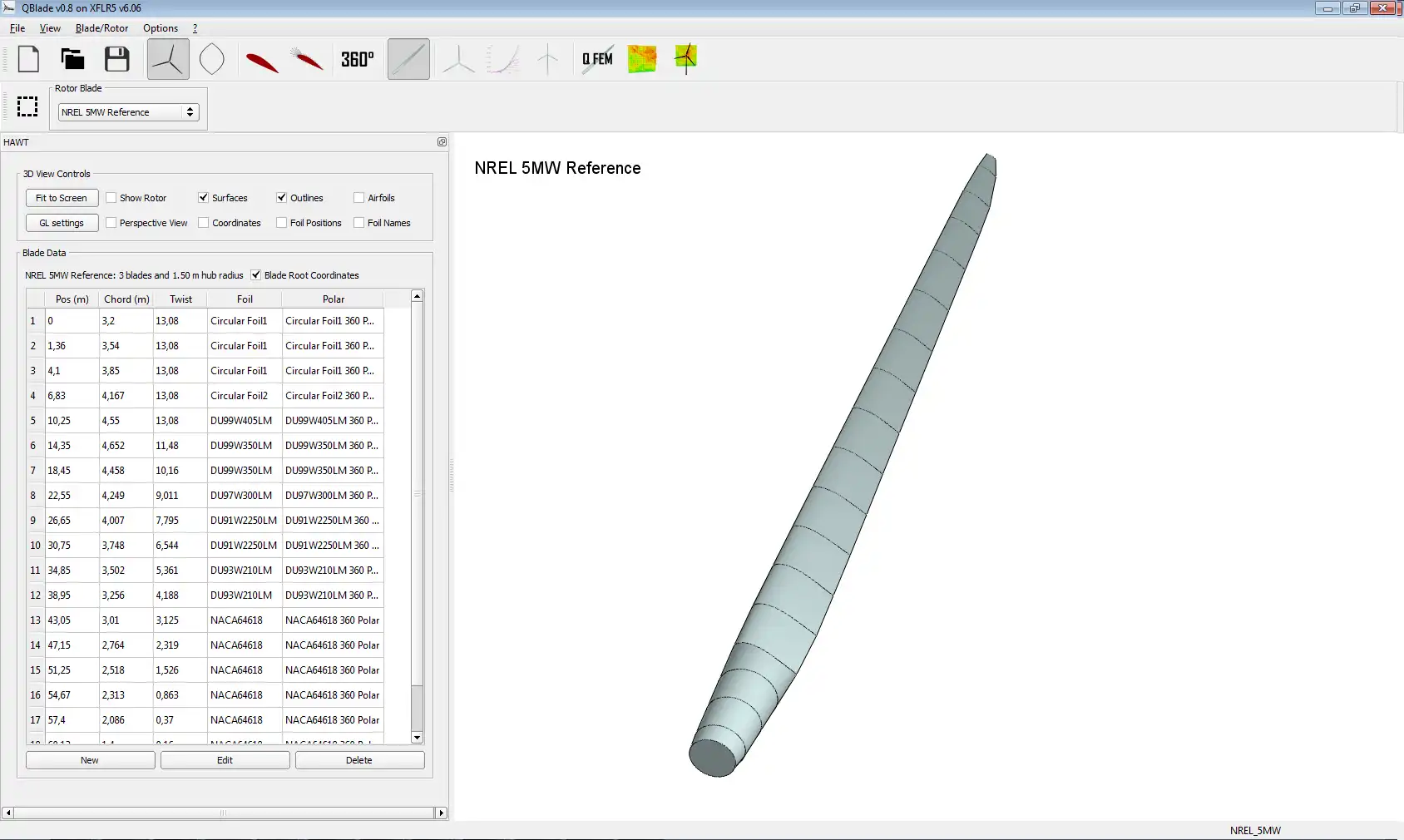

  • Wind turbine blade design and optimization for horizontal and vertical axis rotors
  • Storing of projects, rotors, turbines and simulations in a runtime database
  • Computation of rotor and turbine performance over tip speed ratio or windspeed range

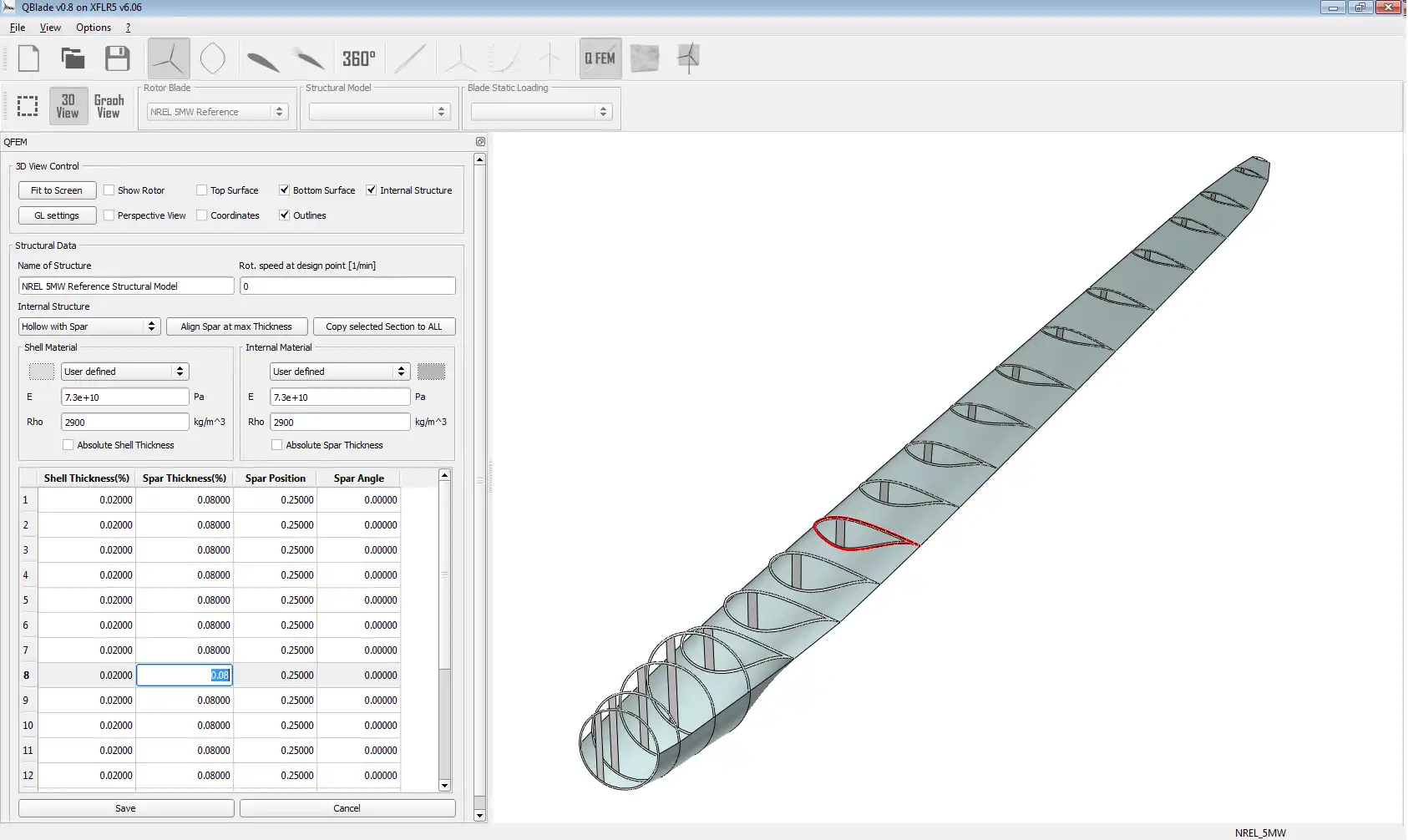

  • Definition of a blade structural model & modal analysis computation

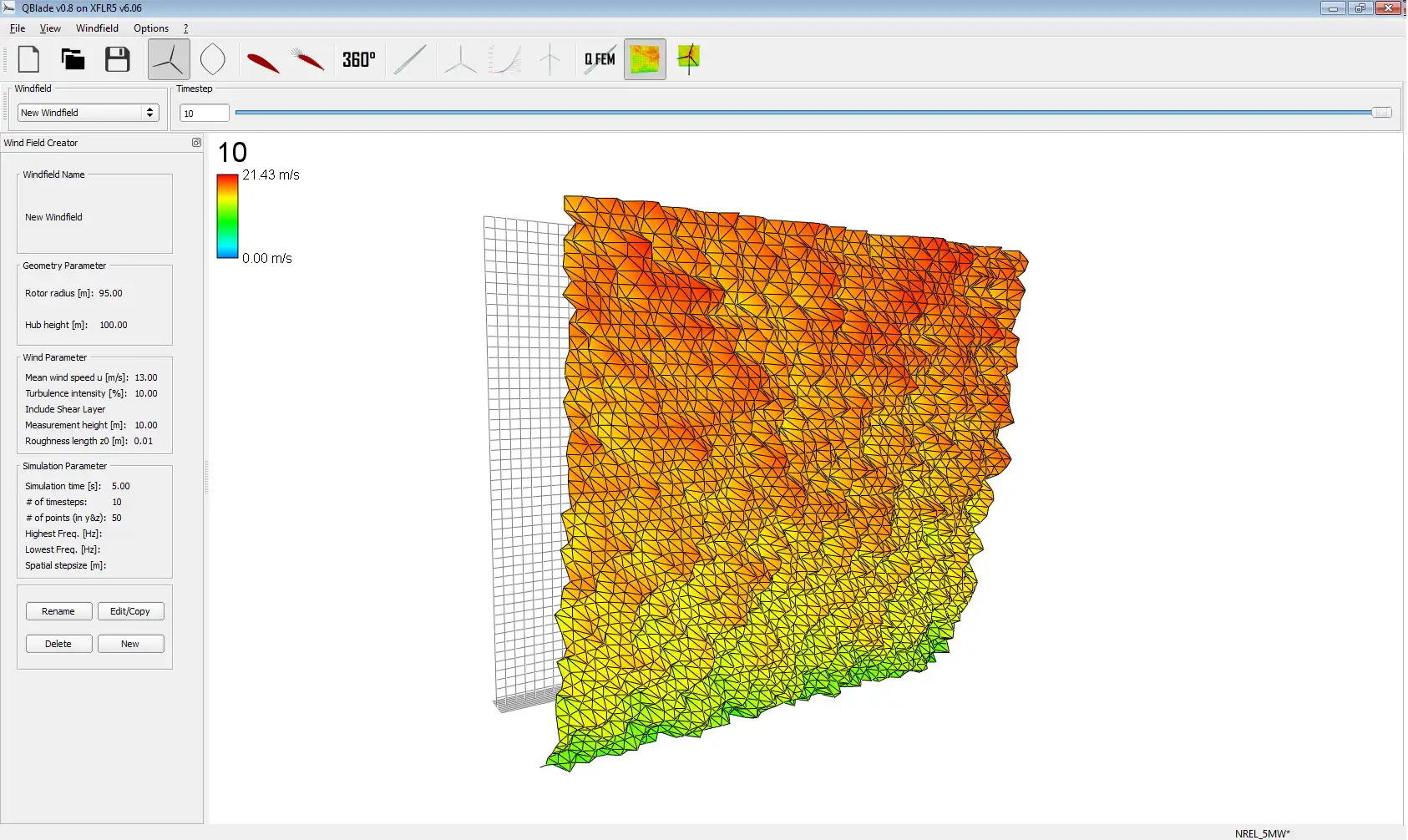

  • Generator for turbulent windfields

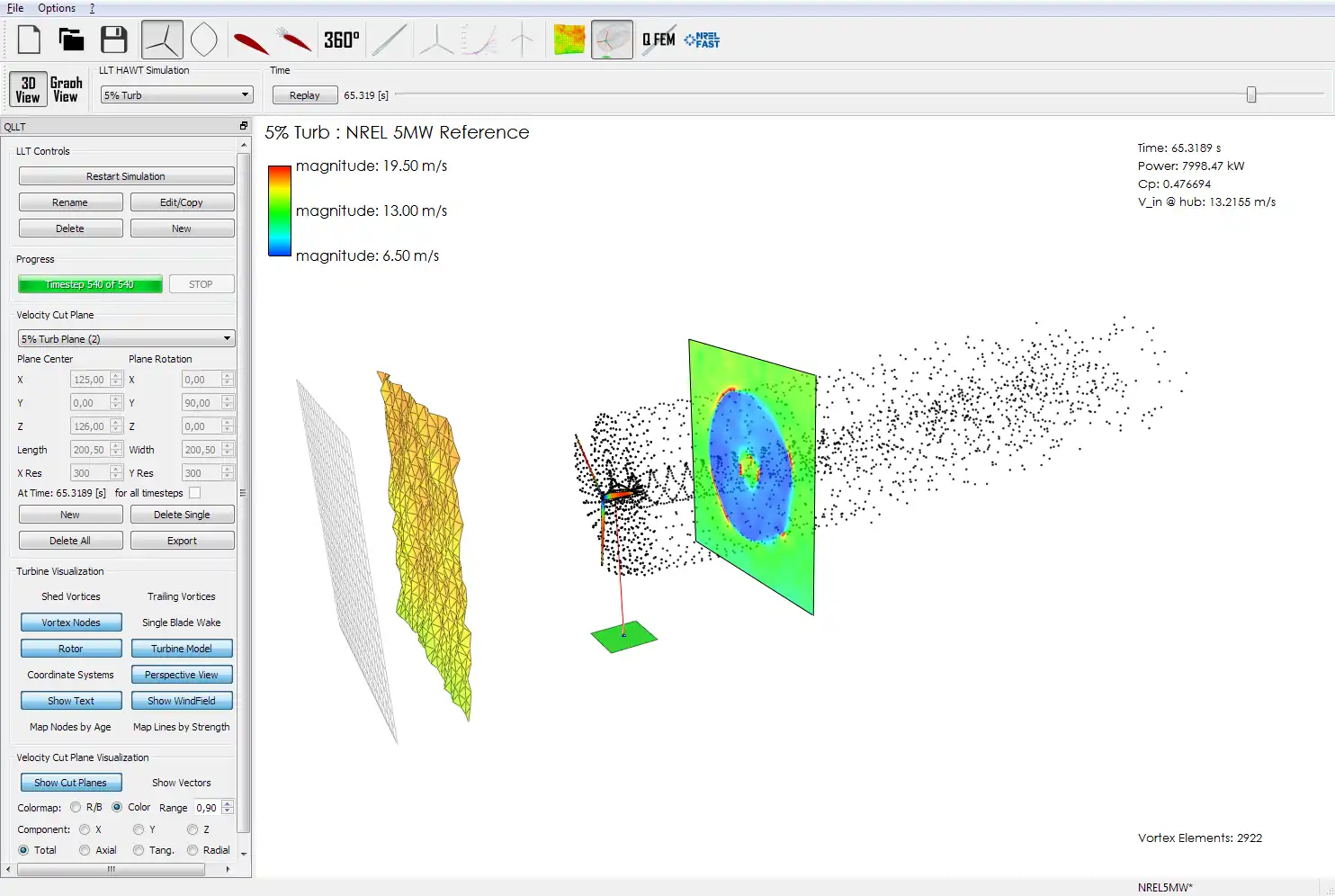

  • Unsteady lifting line simulations for VAWT & HAWT
  • Unsteady Aerodynamics & Dynamic Stall
  • ParaView compatibility
  • PNoise: Airfoil self-noise evaluation
  • Fully coupled with FAST structural simulator from NREL


Audience

Aerospace, Science/Research, Education, Engineering


User interface

Qt


Programming Language

C++


Categories

Simulations, Physics

This is an application that can also be fetched from https://sourceforge.net/projects/qblade/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
