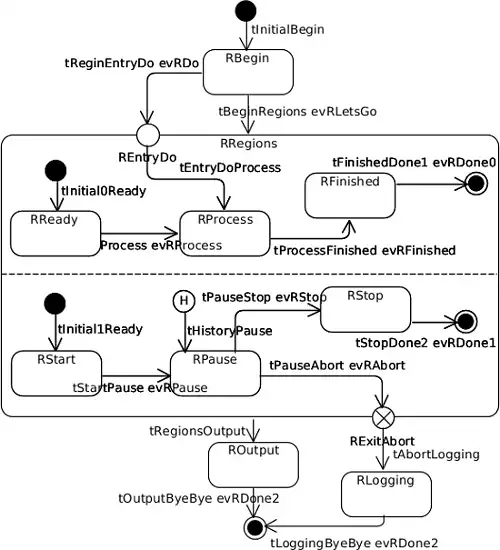

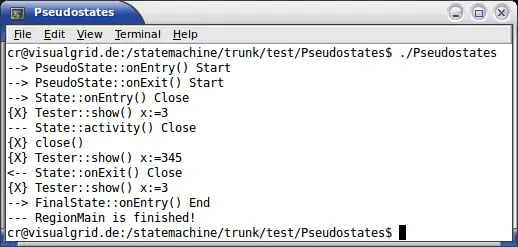

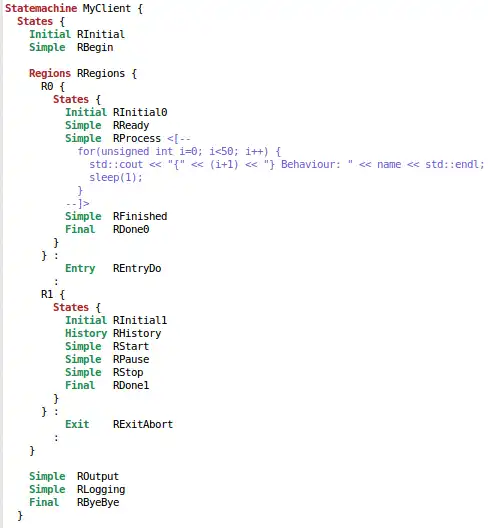

SCREENSHOTS
Ad
UML 2 Statemachine for C++
DESCRIPTION
UML 2 Statemachine Code Generator is a developer framework for an easy implementation of statemachine based applications. Here, with this framework only one Domain-specific language (DSL) specification is necessary to create executable codes for Linux, Mac OS X, and Microsoft Windows. With this framework you save a lot of time and effort during implementation; also you have an always valid - based on a well-defined C++ standard - generated code with high quality.Features
- Based on UML 2.4 Superstructure specification
- A commercial-grade cross-platform Harel UML 2 Statecharts framework for Linux (32-bit, 64-bit), Mac OS X, and Microsoft Windows 7 (32-bit, 64-bit)
- Easy to use Domain-specific language (DSL)
- Embed your C/C++ code within UML Statemachine's DSL
- DSL parser is based on ANTLR 3 Parser Generator
- External and internal event handling for all specified (sub-)transitions!
- Supports thread based orthogonal execution of different state flows
- Supports guarded transitions between states
- Supports history states; resume on a specific state
- Supports initial states, final states, terminate states, and entry-/exit states of regions
- Supports large scale state machines with hundreds of states
- Uses Transition control flows, no slow if-else/switch-case decision statements
- Library based implementation with a well defined Application-programming interface (API)
- Doxygen documentation of all API functions which are usable in any applications
- All status messages can be redirect to your specified target
- Syntax highlighting for gEdit
Audience
Information Technology, Developers, Engineering
Programming Language
C++, C
