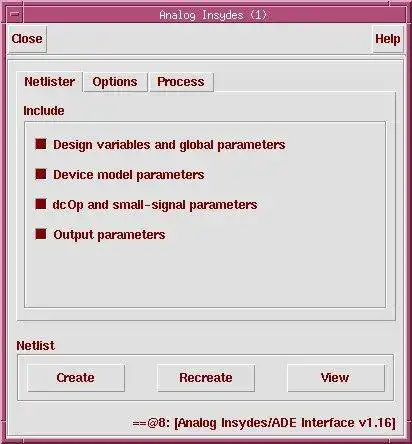

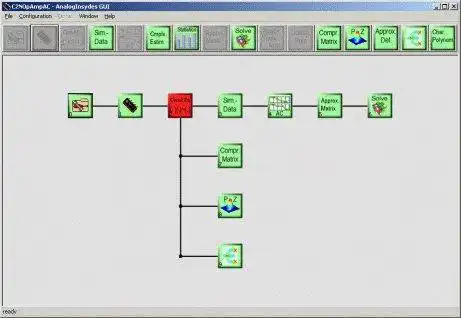

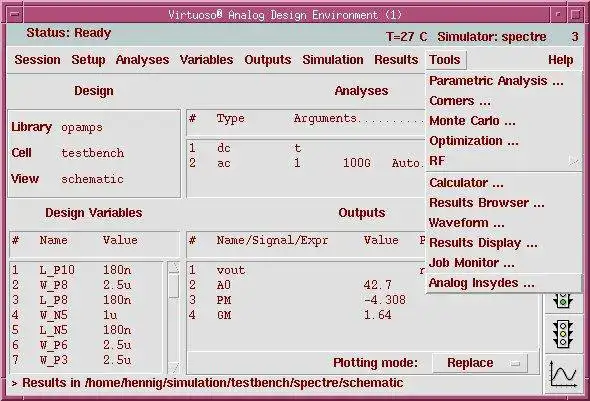

SCREENSHOTS
Ad
Analog Insydes Add-Ons to run in Linux online
DESCRIPTION
Analog Insydes is a Mathematica toolbox for symbolic analysis of analog electronic circuits. This project provides a set of free add-ons to Analog Insydes, including a Java front-end and a native netlister for Cadence's Analog Design Environment (ADE).Features
- Graphical user interface for Analog Insydes
- Cadence ADE integration with native direct netlister
- Z-domain analysis of switched-capacitor circuits
- Smith charts
- BSIM3 to SPICE small-signal MOSFET model converter
Audience
Engineering, Science/Research
User interface
Java Swing, Other toolkit, Project is a user interface (UI) system
Programming Language
Java, Lisp, Mathematica
This is an application that can also be fetched from https://sourceforge.net/projects/aidc/. It has been hosted in OnWorks in order to be run online in an easiest way from one of our free Operative Systems.
