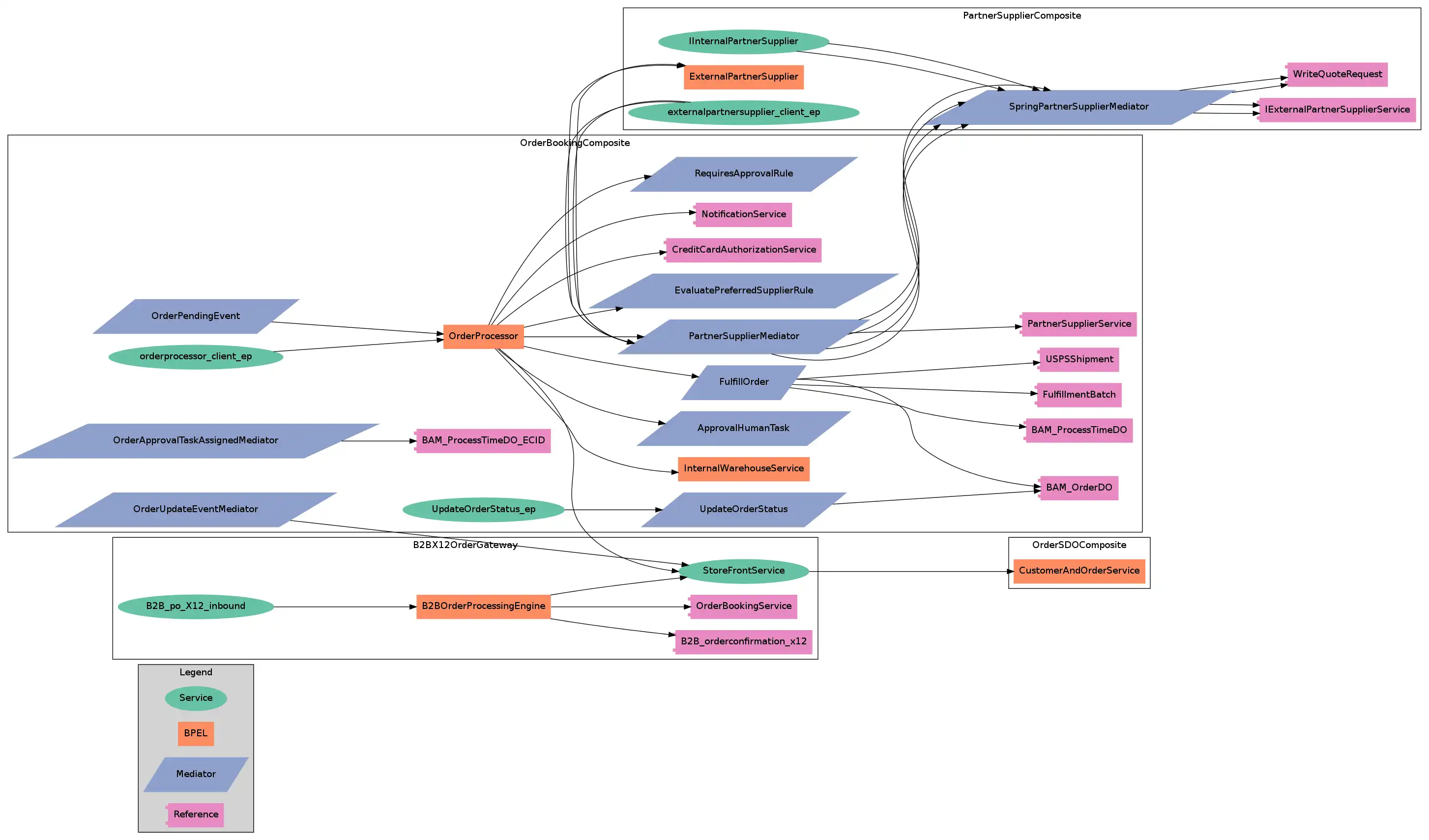

Large BPEL or SOA applications may have many components and relationships that can be difficult to understand. This project generates diagrams for applications based on the Service Component Architecture (SCA) model.
This has primarily been tested with Oracle Fusion Middleware 11g applications but should work with other BPEL or SOA frameworks.
